Product Details:
Payment & Shipping Terms:
|
| Name: | Generator Recoil Starter | Material: | Iron Alloy |
|---|---|---|---|
| Pull Type: | Recoil | Weight: | 0.5kgs |
| Color: | Black Or Red | Model: | 2kw-5kw 152 To188 5.5hp 6.5hp |
| High Light: | Iron Alloy Generator Recoil Starter Assembly,5kw Generator Recoil Starter Assembly,Iron Alloy Generator Engine Parts |
||

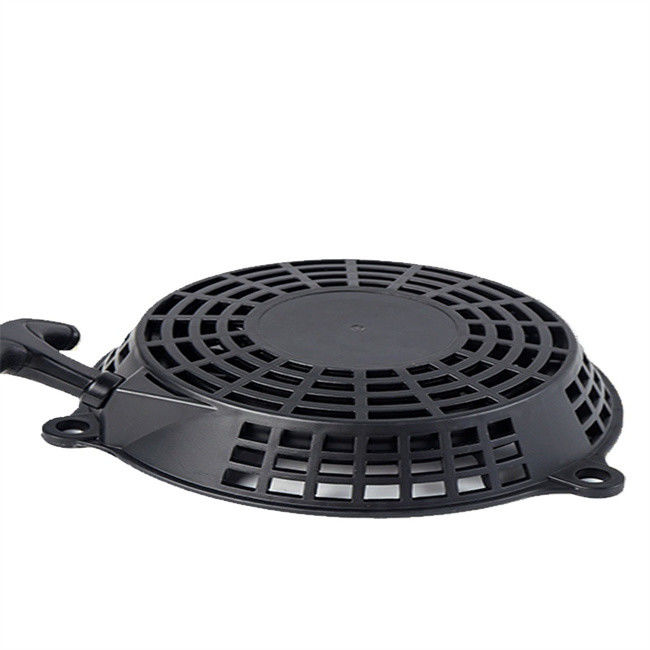

Generator Recoil Starter Puller Fits For 2kw to 8.5kw 152 To188 5.5hp 6.5hp Gasoline Engine
Overview
1. Application supply for generator recoil starter 2kw to 5kw 152 To188 5.5hp 6.5hp Gasoline Engine
2. Using temp.:-20℃--80℃, Storage temp.: -40℃--100℃
3. Packaging Details: 20pcs in 1 carton
4. Single gross weight: about 0.61kgs based on each model.
5. The installation size: as follows picture

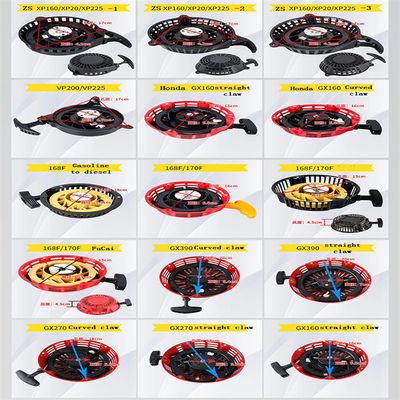

How to distingguish models of generator recoil starter:
1. Check the box code near the oil port

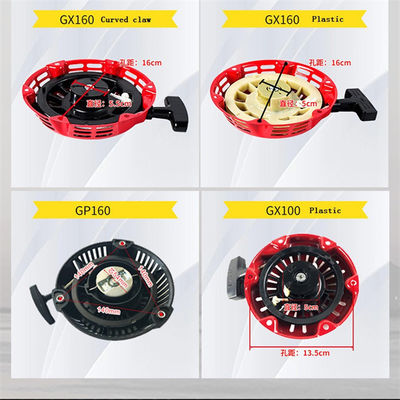

2. Measure the size of core diameter and diagonal pitch as follows:
How to distingguish the shape of generator recoil starter:
1. Round
2. Hexagon
3. D
4.Y

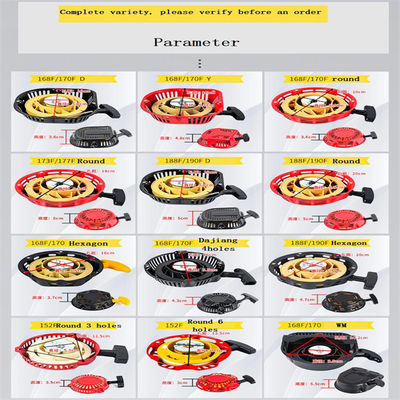

Parameter:
| Name | Diagonal Pitch | Starting Core Diameter | Default shipping color |
| 168F/170F D | 16cm | 5.5cm | Black |
| 168F/170F Y | 16cm | 5.5cm | Red |
| 168F/170F hexagon | 16cm | 5.5cm | Black |
| 168F/170F round | 16cm | 5.5cm | Red |
| 173F/177F round | 18cm | 5.5cm | Red |
| 188F/190F hexagon | 20cm | 5.5cm | Black |
| 188F/190F round | 20cm | 5.5cm | Red |
| 188F/190F D | 20cm | 5.5cm | Black |
| 152F round 3 holes | 11.5cm | 5.5cm | Red |
| 152F round 6 holes | 13.5cm | 5.5cm | Red |
| 154F round | 15cm | 5.5cm | Red |
| 168 daji | 16cm | 5.3cm | Black |
