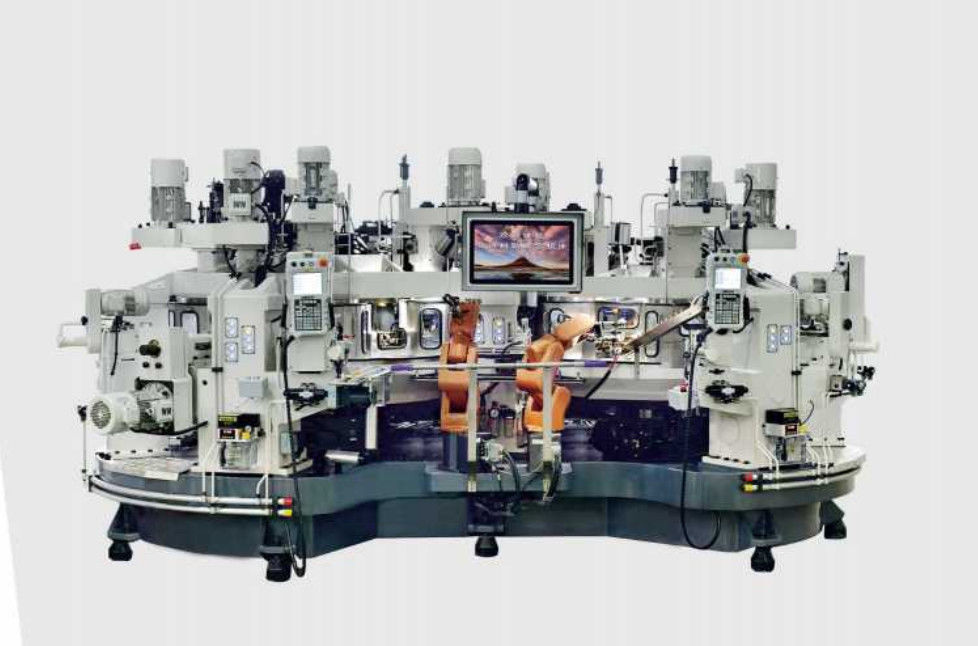

Valve Producing Equipment Cut-Off Valve Four-Direction One Time Processing Tools
Cut-off valve four-direction one time processing tool
Main technical parameters:
(1) Processing object: globe valve
(2) Processing material: copper
(3) Work station distribution: left ten work stations, right eight work stations; a total of 22 powerheads: 14 cutting powerheads, 2 grooving powerheads, 5 tapping powerheads, 1 servo powerhead. Industrial robot loading and unloading
(5) Servo turntable: 2 sets
(6) Hydraulic system working pressure: 4 Mpa
(7) Power of the whole machine: about 57Kw
(8) Total weight of machine tool: about 12T
(9) Floor space: about 8X7m².
