Product Details:
Payment & Shipping Terms:
|
| Cost: | Affordable | Durability: | High |
|---|---|---|---|
| Maintenance: | Low | Name: | Valve Production Equipment |
| Noise: | Low | Power: | Customizable |
| Pressure: | Customizable | Safety: | High |
| Size: | Customizable | Speed: | Customizable |
| Voltage: | Customizable | Weight: | Customizable |
| High Light: | Boring Gate Valve Making Machine,Boring Gate Automatic Assembly Machine,CNC Automatic Assembly Machine |
||

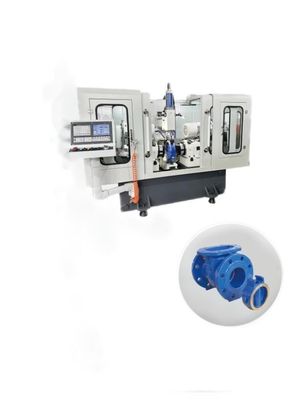

CNC Sealing Surface Gate Boring Gate Special Machine Valve Manufacturer Tools
CNC sealing surface gate boring gate special machine valve factory and manufacturer
Product introduction
1. Adopt wide number of dual-channel numerical control system
2. Debugging operation is convenient, can process all kinds of large and small gate valve products, gate processing range: DN100-600
3. Processed parts sealing more durable, high stability equipment, durable.
(1) Processing object: hard gate valve body/hard gate valve plate
(2) Processing range: gate specifications DN100-300
(3) Processing material: ductile cast iron / brass
(4) Workstation Distribution: Workstation Distribution: left one workstation, right one workstation; a total of 2 power head: servo spreading knife power head + servo sliding table
(5) Hydraulic system working pressure: 4 Mpa
(6) Machine power: about 25Kw
(7) Total weight of the machine: about 8T
(8) Floor space: about 2X5m2
