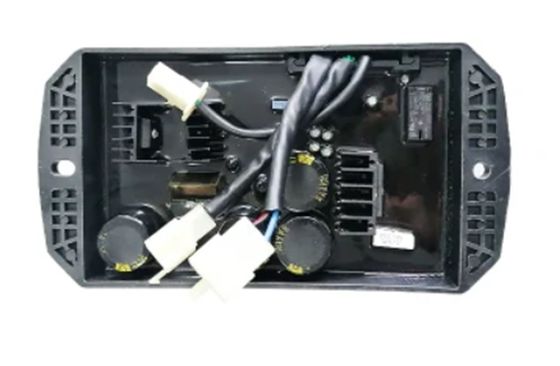

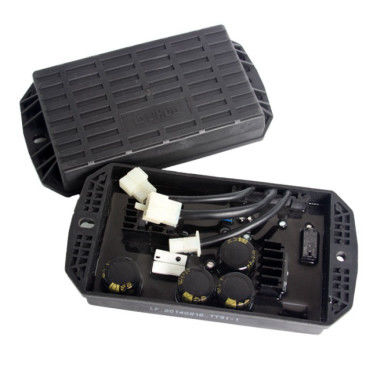

Black Gasoline Generator Voltage Regulators With Plastic Square Shell Parts 8.5kw-15kw

8.5kw-15kw Plastic Shell Generator Voltage Regulators For Gasoline generator

Overview

1. Supply petrol generator regulator 8.5kw-15kw general model

2. Applicable brands: Cummins, Kohler, Honda, Yamaha, Robin, Yamaha, Zongshen, Loncin, Champion,Briggs and Stratton,Onan,Predatoretc etc. AVR automatic voltage regulators.
3. Packaging Details: 25pcs in 1 carton

4. Single gross weight: 1.20kgs

All the following electrical parameters are measured with a true RMS meter.

1. Voltage:230±2V(Factory set parameter environment 25℃±5℃ for this generator voltage regulator)

2. Voltage stability: ±1V

3. Steady-state voltage adjustment rate:≤2%

4. Starting voltage: ≥3.5V (can also be connected to an external battery to start excitation)

5. Generator hot and cold state output voltage stability: ≤ 2V

6. Output voltage temperature drift:≤2V

7. Load carrying capacity:

 With 110% of the load, the gasoline generator voltage regulator can work for a long time,

with the power factor exceeded to 1.1 rated load, the regulator can work for a long time.

Protection function:

1. generator rotor excitation short circuit protection.
2. Load output short circuit protection function.
3. Short circuit protection between main and auxiliary windings.
4. Sampling winding dropout protection.

Anti-interference ability

Adopting capacitor resistance filter, active filter, isolation technology and other measures,

the generaor voltage regulator has a strong anti-interference ability, so that the generator with a variety of loads,

the regulator can work safely, reliably and stably.
