Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5kw-8.5kw Generator Voltage Regulators | Power: | 5kw-8.5kw |
|---|---|---|---|
| Material: | Plastic | Application: | Gasoline Generator |
| OEM: | Yes | Aftersales: | Yes |
| High Light: | Plastic Shell Generator Voltage Regulators,Plastic Shell Generator repair parts,Generator Voltage Regulators Stabilizer |
||

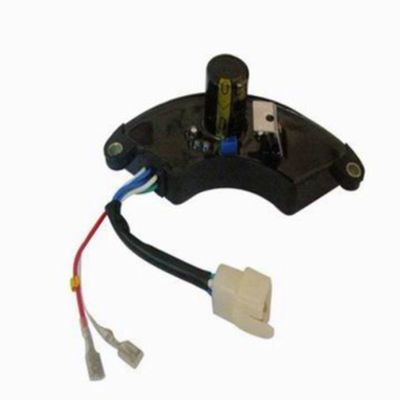

5kw-8.5kw Plastic Shell Generator Voltage Regulators For Petrol Generator
Overview
1. Supply petrol generator regulator 5kw-8.5kw general model
2. Applicable brands: Cummins, Kohler, Honda, Yamaha, Robin, Yamaha, Zongshen, Loncin, Champion,Briggs and Stratton,Onan,
3. Predatoretc etc. AVR automatic voltage regulators.
4. Square shape material: plastic, Fan-shaped material: plastic or aluminium
5. Packaging Details: 500pcs in 1 carton
6. Single gross weight: 0.60kgs
| model | Plug form | Mounting hole position |
| 5kw-8.5kw Single phase | 6 (4 + 2 ) | 14cm/5.51in |
| 5kw-8.5kw Three phase | 8 (6+ 2 ) | 14cm/5.51in |
All the following electrical parameters are measured with a true RMS meter.
1. Voltage: 230±2V (factory set parameters environment 25℃±5℃ for generator voltage regulators)
2. Voltage stability: ±1V
3. Steady-state voltage adjustment rate: ≤2％
4. Starting voltage: ≥1.5V
5. generator hot and cold state output voltage stability: ≤ 2V
6. Output voltage temperature drift:≤2V
7. with load capacity:
With 110% of the load, this petrol generator regulator can work for a long time,
with the power factor exceeds the rated load to 1.1, the regulator can work for a long time.
Protection function:
1. Generator rotor excitation short circuit protection.
2. Load output short circuit protection function.
3. Short circuit protection between main and auxiliary windings.
4. Sampling winding dropout protection.
