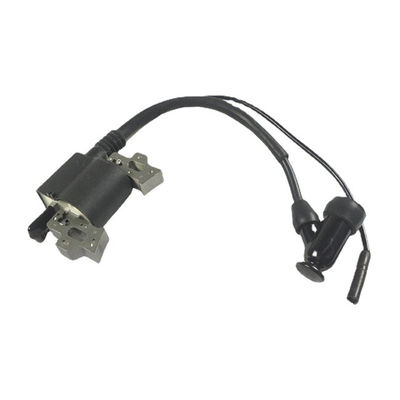

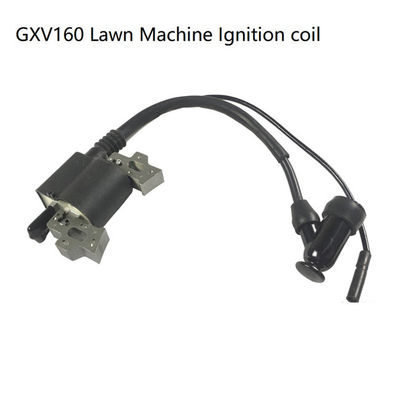

Petrol Generator Ignition Coil For Honda GXV160 Lawn Mower Spare Parts Igniter

Petrol Generator Ignition Coil Honda GXV160 Lawn Mover Spare Parts Igniter

Overview

1. Application supply for generator Ignition coil Honda GXV160

2. Using temp.:-20℃--80℃, Storage temp.: -40℃--100℃

3. Packaging Details: 100pcs in 1 carton

4. Single gross weight: 0.32kgs

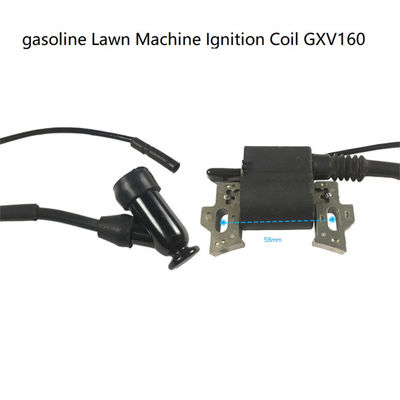

5. The installation size:  58mm/2.28in

6. We can supply the generator ignition coils for follows:

Electrical Specification of Honda GXV160 Lawn Mover Ignition Coil

Note: The following parameters are tested in the flywheel magnetic field strength of not less than 1700 gauss, flywheel and igniter gap of 0.4 ±                0.1mm, three-pin spacing of 6-6.2mm under the conditions of the test.
1. The lowest continuous ignition speed of the igniter: ≤250rpm.
2. The ignition angle of the igniter at 3000rpm is 25°±1°.
3. Igniter at 3000rpm: secondary output voltage ≥23KV.
4. 3000rpm to provide the oil alarm working voltage peak ≥ 11V.
5. Grounding of the ignition off wire should turn off the ignition within 1 second.
6. In the three needle pole distance of 9-9.5mm, the speed of 3000 rpm can be continuous ignition without breaking fire.
7. The igniter in the high-voltage output open-circuit conditions, with 3000 rpm speed in the above conditions after running for more than 5 minutes, its performance meets the above requirements.
