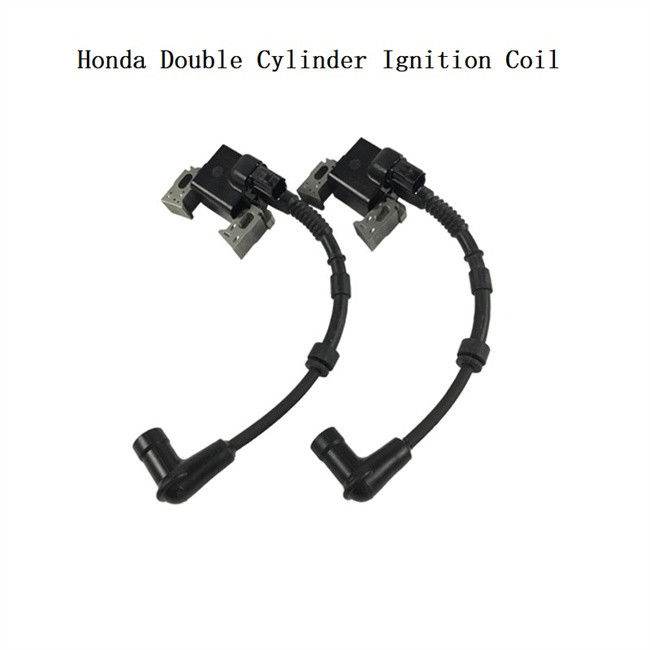

GX630 Ignition Coil For Honda

GX630 Ignition Coil For Honda
GX630 Ignition Coil For Honda GX630 Ignition Coil For Honda

Large Image :  GX630 Ignition Coil For Honda

Product Details:
Place of Origin: China
Brand Name: Panmao
Model Number: ICHD
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: standard box and carton or Customised
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000+pcs+per day
Detailed Product Description
Name: Generator Ignition Coil Model: Honda GX630 Double Cylinder
Material: Plastic And Copper Weight: 0.32KG
Highlight:

GX630 Ignition Coil For Honda

,

GX630 Engine Ignition Coil

,

GX670 Ignition Coil For Honda

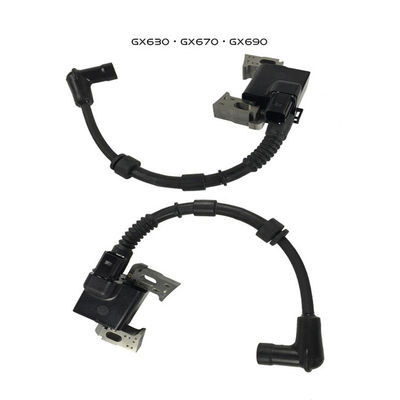

Petrol Generator Ignition Coil For Honda GX630 GX670 GX69 Double Cylinder Spare Parts





Overview



1. Application supply for generator Ignition coil Honda GX630 double cylinder with 2pcs

2. Using temp.:-20℃--80℃, Storage temp.: -40℃--100℃

3. Packaging Details: 100pcs in 1 carton

4. Single gross weight: 0.32kgs

5. The installation size:  58mm/2.28in

6. We can supply the generator ignition coils for follows:

Parts for Yamaha Series ET950, ET2700, ET6600, ET4600,ET650, etc.
Parts for Robin Engine EY20 EY15, EY18, EY28, EH12, EX13, EX17, EX21
Parts for Konler, Briggs&Stratton 2kw-15kw all ignition coil
Parts for Honda GX120, GX160, GX200, GX240, GX270, GX340, GX390, GX440, GX25, GX35, GX100, GX110, GXV135, GXV160, GCV160, GX620, GX670
Parts for diesel generator and engine 152F, 168F, 170F/A,178F/A,186F/A, 188FKAMA186F, etc
Parts for petrol water pump 2 inc, 3 inch, 4 inch





Electrical Specification of Honda GX360 GX670 GX690 Ignition Coil



Note: The following parameters are tested in the flywheel magnetic field strength of not less than 1700 gauss, flywheel and igniter gap of 0.4 ±                0.1mm, three-pin spacing of 6-6.2mm under the conditions of the test.
1. The lowest continuous ignition speed of the igniter: ≤250rpm.
2. The ignition angle of the igniter at 3000rpm is 25°±1°.
3. Igniter at 3000rpm: secondary output voltage ≥23KV.
4. 3000rpm to provide the oil alarm working voltage peak ≥ 11V.
5. Grounding of the ignition off wire should turn off the ignition within 1 second.
6. In the three needle pole distance of 9-9.5mm, the speed of 3000 rpm can be continuous ignition without breaking fire.
7. The igniter in the high-voltage output open-circuit conditions, with 3000 rpm speed in the above conditions after running for more than 5 minutes, its performance meets the above requirements.



GX630 Ignition Coil For Honda 0GX630 Ignition Coil For Honda 1GX630 Ignition Coil For Honda 2
