Product Details:
Payment & Shipping Terms:
|
| Product Name: | Generator Piston Ring | Material: | Steel, Iron |
|---|---|---|---|
| Origin: | Chongqing, China | Surface Treatment: | Polishing |
| Model: | 152/154/168 /170/173/177/182/188 /190/192/GX100/GX160/GX200/GX390 | Application: | Petrol Engine |
| Highlight: | Generator Piston For GX160,Piston Rings For GX100,Generator Piston For GX100 |
||

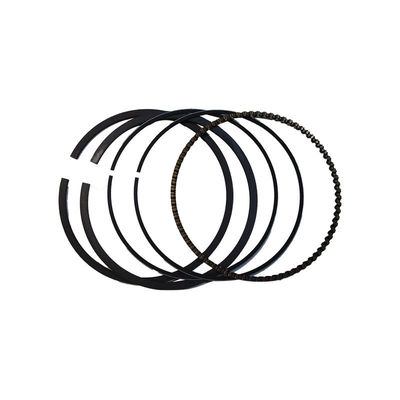

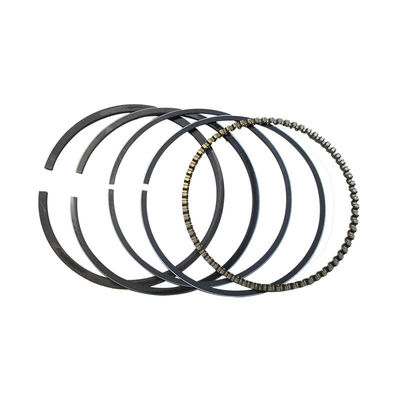

Gasoline Generator Piston Ring 152 154 168 To 192 Ring GX100 GX160 GX200 GX390
Overview
1. Supply for petrol engine piston ring 152/154/168 /170/173/177/182/188 /190/192/GX100/GX160/GX200/GX390.
2. Applicable brands: Petrol Engine for generator, micro-tiller, rotary tiller, Suction pumps, agricultural machinery, Kart, etc.
3. Plece of original: Chongqing, China
4. Packaging Details: 100pcs in 1 carton
5. Single Net weight: 0.3kgs
6. one unit= 5 piston ring
Features of petrol generator piston ring:
Anti-oxidation
High temperature resistance
Preservative
Durable
Quality Assurance
Complete model
OEM quality
Tips:

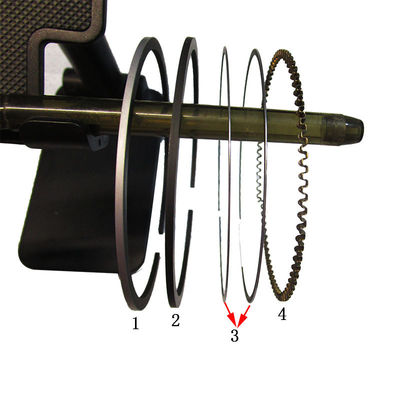

Three major functions of piston rings
1. Limit and regulate oil consumption
2. Seal and isolate the crankcase and fuel chamber
3. Dissipate the heat generated by the piston during combustion to the cooling cylinder surface
Standard size of petrol engine piston ring 152/154/168 /170/173/177/182/188 /190/192/GX100/GX160/GX200/GX390:
| Petrol Engine Model | Piston Diameter | Pistion ring thickness |
| 152F | 52mm | 1.5mm |
| 154F | 54mm | 1.5mm |
| 156F | 56mm | 1.5mm |
| 168F | 68mm | 1.5mm |
| 170F | 70mm | 1.5mm |
| 173F | 73mm | 2.0mm |
| 177F | 77mm | 2.0mm |
| 182F | 82mm | 2.0mm |
| 188F | 88mm | 2.0mm |
| 190F | 90mm | 2.0mm |
| 192F | 92mm | 2.0mm |
| 原装GX160 | 68mm | 1.0mm |
| 原装GX240 | 73mm | 1.0mm |
| 原装GX270 | 77mm | 1.0mm |
| 原装GX340 | 82mm | 1.0mm |
| 原装GX390 | 88mm | 1.0mm |
| 原装GX420 | 90mm | 1.0mm |
