Medium-Sized Static Gantry Friction Stir Welding Machine Friction Stir Welding Technology

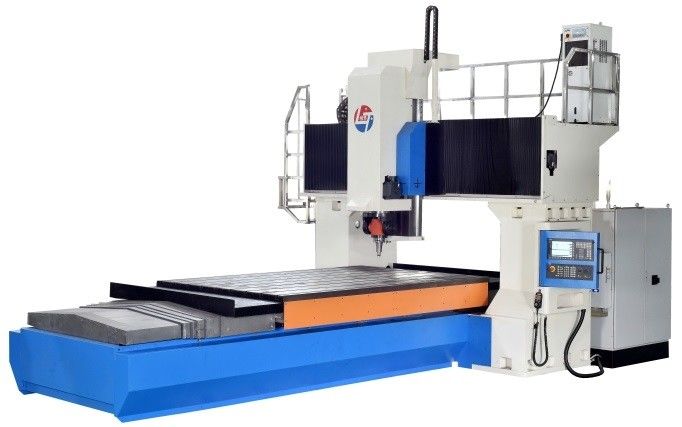

This medium static gantry type friction stir welding equipments, are a kind of solid –state welding
equipments based on friction stir welding, which have unparalleled advantages for the welding of aluminum
alloys, magnesium alloys, copper alloys and other materials. The equipments are suitable for production
of radiator, heat sink device, battery tray, board of body vehicle rail, electrical backplane and other parts.
It can also provide different shapes of tools, automatic clamping system, auxiliary pressing device, automatic
seam tracking system and complete welding process.

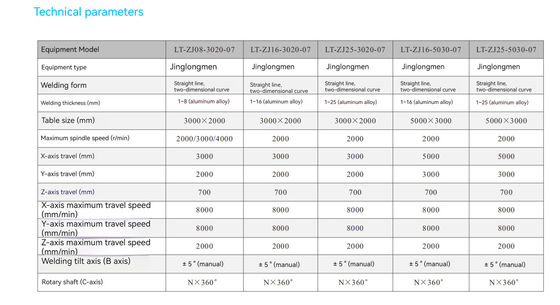

Technology Parameters:
Tips:
Friction stir welding (FSW) is a new solid-state welding method. A rotating tool with
a specially designed pin and shoulder is inserted into the workpiece to be jointed and
traverses along welding direction, through heat produced by friction and plastic work.
And the soften material was extruded by the shoulder, thereby the high quality joints
are achieved under the thermal-mechanical action.
Main Features of FSW
1. No solder and shielding gas required,
2. Without bevel preparation and special treatment before welding,
3. Low distortion,
4. High quality joints without cracks, mixture and pores,
5. Variations of weld form,
6. Special materials such as hot crack sensitive material can be welded,
7. Green and environmentally-friendly (Without soot, splash, electricity and arc),
8. Mechanization and automation with high efficiency and low energy consumption
9. The workpiece must be fixed and clamped when welding.
Schematic drawing of FSW
This Welding Technology is wildly used the following industry:
COMMUNICATION ELECTRONICS
inned radiator by air cooling (linear friction stir welding)
Liquid-cooled radiator (2D friction stir welding)
welding of Heat sink,soft,connection, sensor, chassis
AUTOMOTIVE
Battery tray of new energy automotive
Motor shell of new energy automotive
Battery box of new energy automotive
Motor controller of new energy automotive
Heat sink box of new energy automotive
Aluminum alloy
hub, hanged arm, chassis parts, rear door, hood, foam aluminum top cover
SHIPBUILDING INDUSTRY
RAILTRANSPORT
AERONAUTICS ANDASTRONAUTICS
In addition, the workbench size of friction stir welding machines can be provided
customized according to customers' requirement.
