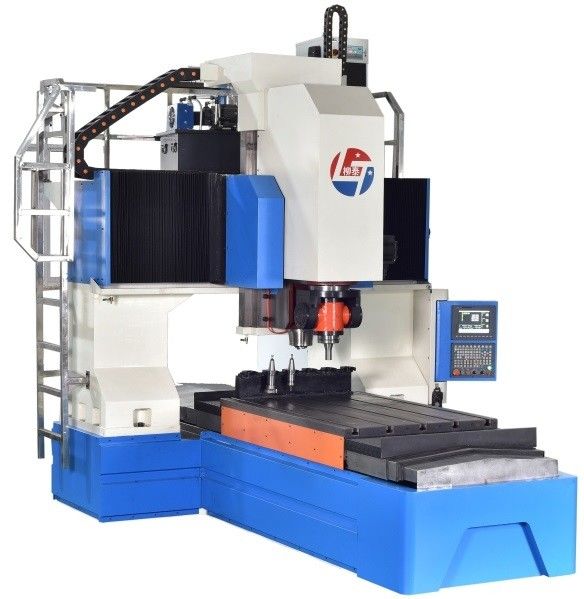

FSW Friction Stir Welding Machine With Compact Static Gantry High Precision

FSW Friction Stir Welding Machine With Compact Static Gantry High Precision
FSW Friction Stir Welding Machine With Compact Static Gantry High Precision FSW Friction Stir Welding Machine With Compact Static Gantry High Precision

Large Image :  FSW Friction Stir Welding Machine With Compact Static Gantry High Precision

Product Details:
Place of Origin: China
Brand Name: Panmao
Model Number: MCHJ
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: standard box and carton or Customised
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10+pcs+per day
Detailed Product Description
Product Name: Friction Stir Welding Machin Welding Accuracy: High Precision
Welding Technology: Friction Stir Welding Welding Material: Aluminum, Magnesium, Copper, Etc
Application: Production Of Radiator, Heat Sink Device, Battery Tray, Board Of Body Vehicle Rail, Electrical Backplane And Other Parts Welding Forms: Straight Line,Two-dimensional Curve
Highlight:

FSW Friction Stir Welding Machine

,

Static Gantry fsw welding machine

,

Friction Stir Welding Machine High Precision

Compact Static Gantry Friction Stir Welding Machine Friction Stir Welding Technology



Small static gantry friction stir welding equipment is a kind of solid phase welding equipment developed based on friction stir welding technology. It has unparalleled advantages in welding materials such as aluminum, magnesium, copper, etc. It can realize straight line and two-dimensional curve stir friction welding, and is suitable for heat sinks, Heat sinks, motor cases, motor controllers, battery trays and other parts production and scientific research. Various shapes of stirring heads, automatic clamping systems, auxiliary clamping automatic clamping system, auxiliary compression device, automatic seam tracking system and complete welding process.

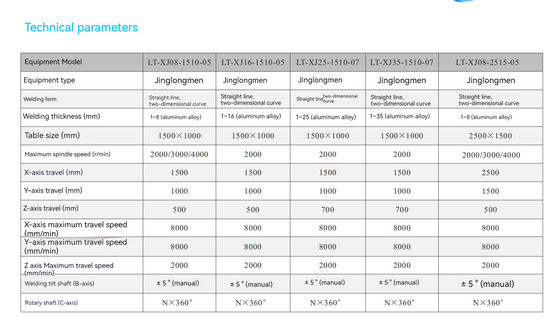

Technology Parameters:



FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 0





Tips:



Friction stir welding (FSW) is a new solid-state welding method. A rotating tool with
a specially designed pin and shoulder is inserted into the workpiece to be jointed and
traverses along welding direction, through heat produced by friction and plastic work.
And the soften material was extruded by the shoulder, thereby the high quality joints
are achieved under the thermal-mechanical action.

FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 1



Bobbin Friction Stir Welding (BFSW) is a new type of friction stir welding technology based on the improvement of single-shoulder stirring head. It can simultaneously weld the upper and lower surfaces of the workpiece It can simultaneously weld the upper and lower surfaces of the workpiece, effectively eliminating problems such as imperfections or root defects, simplifying the welding clamping requirements and expanding the application of friction stir welding technology. It provides a new way to simplify the welding fixture requirements and expand the application of friction stir welding technology.

FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 2



Stationary Shoulder Friction Stir Welding (SSFSW) SSFSW is a newly developed friction stir welding technology. It adopts the split design of the shoulder and stirring needle, and the stirring needle rotates when welding. When welding, the stirring needle rotates, and the shoulder just slides on the specimen surface without rotating. The surface of the static shoulder friction stir weld head is The surface of static-shoulder friction stir welding head is smooth and clean, without arc lines and flying edges, and it can optimize the temperature gradient in the direction of the thickness of the joint and reduce welding deformation, which is suitable for thick plates and fillet welds. Applicable to thick plates, fillet welds and titanium alloys and other materials with low thermal conductivity welding, in aerospace, It has a broad application prospect in aerospace, rail transportation, shipbuilding and other fields.



FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 3


This Welding Technology is wildly used the following industry:



COMMUNICATION ELECTRONICS

inned radiator by air cooling (linear friction stir welding)

Liquid-cooled radiator (2D friction stir welding)
welding of Heat sink,soft,connection, sensor, chassis

AUTOMOTIVE
Battery tray of new energy automotive
Motor shell of new energy automotive
Battery box of new energy automotive
Motor controller of new energy automotive
Heat sink box of new energy automotive
Aluminum alloy
hub, hanged arm, chassis parts, rear door, hood, foam aluminum top cover

SHIPBUILDING INDUSTRY

RAILTRANSPORT

AERONAUTICS ANDASTRONAUTICS

In addition, the workbench size of friction stir welding machines can be provided
customized according to customers' requirement.

FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 4
FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 5
FSW Friction Stir Welding Machine With Compact Static Gantry High Precision 6
