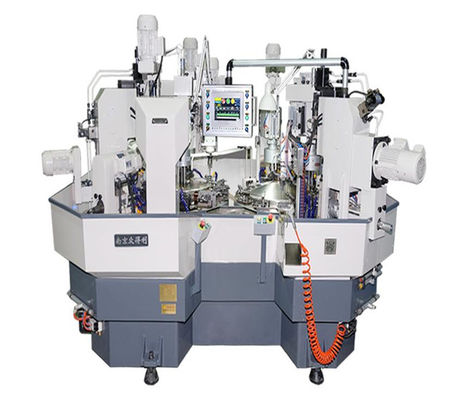

Gas Valve Assembly Machine Specialized Double Turntable Processing Tools

Double Turntable Gas Valve Specialized Valve Assembly Machine Processing Tools

High-efficiency non-standard machine tool design and manufacture

Intelligent processing special combination machine tool research and development

Overview:

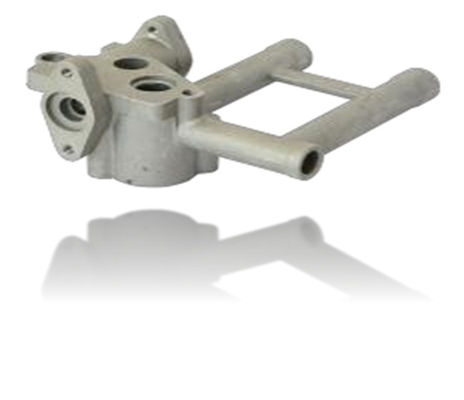

1. Processing object: gas valve body
2. Processing material: die-casting aluminum
3. Distribution of working stations: left ten working stations, right ten working stations
4. Power head distribution: a total of 17 power heads, including 1 cutting power head, 6 tapping power head
5. Hydraulic system working pressure: 4 Mpa
6. Machine power: about 48Kw
7. Total weight of the machine: about 12T
8. Floor space: about 7X6m²

For air-conditioning, plumbing, gas appliances, automotive and other industries, a variety of complex valve parts of large quantities of rapid processing, customized for various types of efficient special combination of machine tools. Supply to Gree Air Conditioning, Zhongshan Gangli, Zhejiang Sanhua, Hengji Industry, Shandong Huanri, Guangdong Qicai, Mingshi Pipeline, Cixi Jinjiajia, Zhongshan Jude, Jiangxi Oudi, Chunjiang Valve, and other famous enterprises and ancillary factories to provide thousands of non-standard valve production machine tools with different performance, and successfully entered the foreign markets of Vietnam, Indonesia, Russia, India and so on.

We can supply the valve assembly machine tools for following product:

Valve Body Specialized Machine Series
Copper valve body special machine: air conditioning shut-off valve, gas valve ball valve, gate valve body, plug valve, steam valve, safety valve, cylinder valve, pressure maintaining valve, water meter valve, etc.; Aluminum valve body series: proportional valves, linkage valves, profile valves, gas valves, plug valves, water heater valves and so on.

Rocker arm, pump body and other casting machine series

Rocker arm seat, injection pump valve body, piston pump valve body, oil pump valve body and other castings.

Specialized machine series for nuts
Copper, steel, various sizes and types of nuts, etc.

Auto parts processing machine series
Fully automatic automobile steering knuckle fork new energy automobile copper busbar, automobile oil pump valve body, etc.

Pipe fitting machine series
Elbows, fittings, tees, etc.

Other Specialized Machines
Lock body, locking sleeve, tripod, flying block seat, hexagonal hole, etc.

CNC sealing surface machine series
Gate valve and gate plate, etc.

Special parts with patent can better meet the needs of product processing

Fine-tuning device (to control radial runout within 0.005mm when changing tools)

Servo power head

Non-disassembly external adjustment of bearing clearance

Flexible fixture
